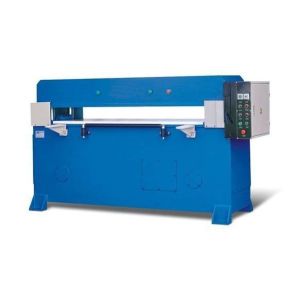

High Quality Hydraulic Die Cutting Machine XCLP3-D800
Application:
This machine is suitable for the large factory to use the shape knife cross to the shoe, the sole, the carpet, the leather, the rubber, etc.
Parameter:
Model number:XCLP3-D800
Maximum cutting force:800KN
The cutting area:1600×1000mm
Upper pressure plate to table distance:50-185mm
Main motor power:7.5kw
Machine weight:7500kg
Note:The company can customize the special specifications such as cutting zone, feeding mode (single, bilateral automatic feeding) according to customer's requirements.
Advantage:
1. Transmission part adopts PLC control, driven by servo motor, the material from one side of the machine input, after die cutting, the output from the other side, to ensure that the feed precision, can run the balance force and feed length through the touch screen and convenient adjustment
2. Host use four-column guide, double crank balance, hydraulic system control, ensure the die-cutting speed and precision of the machine, all the sliding connection parts adopt the central oil supply automatic lubricating device, the wear to a minimum.
3. The material is sent on the straight plate, and the material is blanking after the mat's micro motion.
4. The machine adopts the photoelectric pneumatic rectifying device, which guarantees the consistency of the material on the pad and the feeding platform.
5. The feeding and discharging port of the machine is equipped with safety curtain, which ensures the safety of the operator.
6. The knife die adopts fixed clamping device, and it is convenient and fast to replace the die.
7. Special specifications can be customized.
